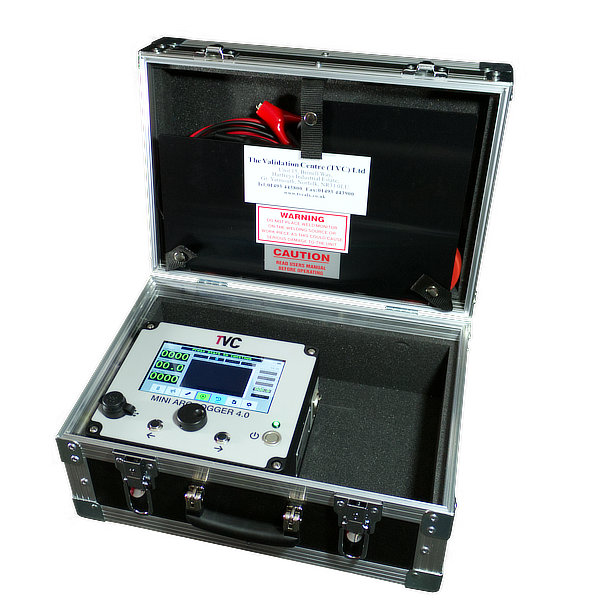

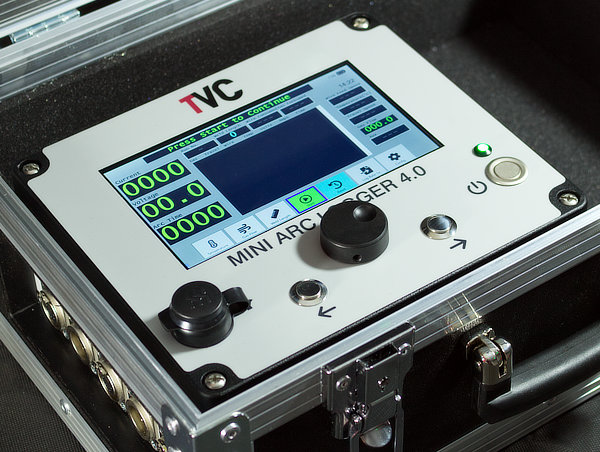

Mini Arc Logger 4.0 (ALX/0510)

The Mini Arc Logger 4.0 (MAL 4.0) weld monitoring data logger can monitor one channel. Using the standard software package, the system can monitor voltage, current, wire feed speed, travel speed, gas flow, temperature, purge oxygen levels, plus automatic head input and energy calculations.

Optional Pulse Reporting software makes it easy to monitor and report complex welding pulses.

With non-intrusive probes, the Mini Arc Logger 4.0 monitors voltage, and current as standard with additional options including:

Pulse mode complies with all requirements of ASME IX (2015), EEMUA Publication 158 (Third Edition) and PD ISO/TR 18491:2015.

Seamless Digital Exchange

With our next generation of weld monitoring and data logging systems, we make it easy to exchange welding data seamlessly across all levels, ensuring compliance with IoT and Industry 4.0. No matter where you are, you can access data and support thanks to wireless capabilities and remote assistance.

Cloud-based Database

When networked to the TVC Edge Server, systems can be used with the TVC WeldGlobe cloud-based database software, allowing remote logging and display of:

Specialist Software

TVC has several specialist software packages available. All our Pulse Reporting software includes real-time pulse energy calculation and displays in accordance with:

We create bespoke programmes to suit your needs so contact us with any special requirements.

Applications & Techniques

Our monitoring systems are TIG High Frequency protected and are for use with:

Durable & Flexible

TVC weld monitors and data logging systems are designed to withstand demanding conditions. Our equipment is durable and hardworking. It can be used to monitor welding procedures, qualify welders, or precision welding fine components and exotic materials in a laboratory setting. For ultimate flexibility, all options can be retrofitted.
