CALSIS Laser, Video & Eddycurrent Inspection Systems
Assuring pipeline integrity with laser technology.
- Three deployment modes including ILUC attachment
- Can be used in both onshore and offshore environments
- Provides clear and detailed images of the weld
- Can be used to identify defects in the weld
- Generates reports that can be used to assess the quality of the weld
- Can be customised to meet the specific needs of the client
The CALSIS Laser Camera system is a remote inspection system for circumferential girth welds in welded pipelines. It is available in two sizes, covering pipe internal diameters of 125-260mm and 180-1500mm, respectively. Each system is supplied in a portable transit flight case.

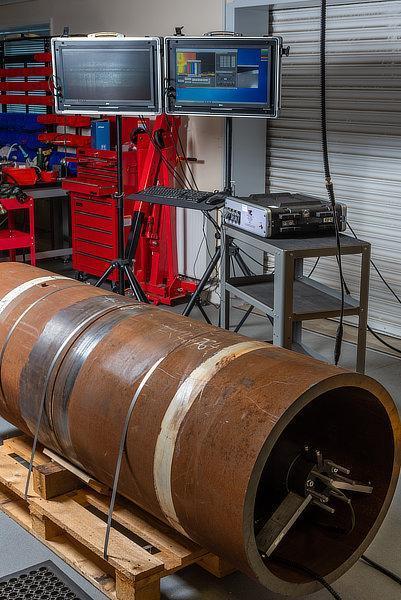

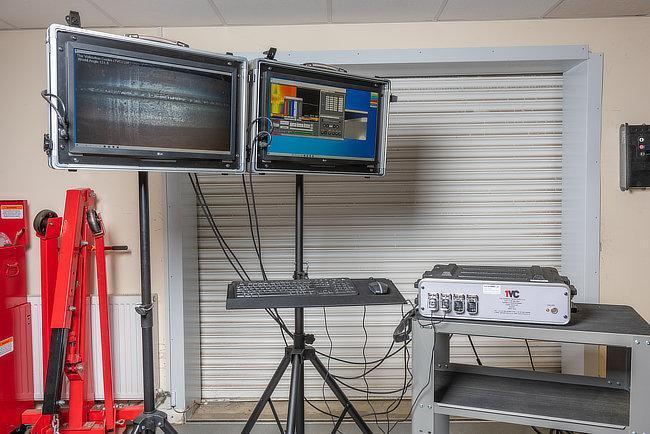

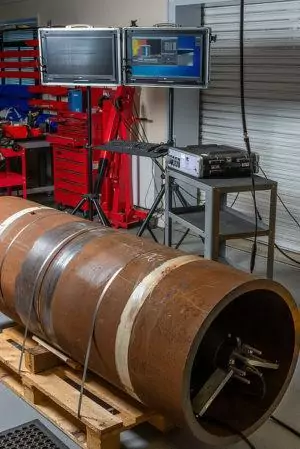

The CALSIS system is a rugged and robust unit designed for use on both onshore and offshore pipeline spreads. It consists of a rugged control unit/PC, two 24-inch HD monitors, and a shelf for the PC keyboard and mouse. The laser scanning information is displayed on the first monitor, while the full HD video is displayed on the second monitor. This allows the operator and welding inspector to have a clear view of both the laser profile scan information and the remote visual inspection of the weld.
Each system also includes a calibration kit that contains certified calibration equipment for the laser dimensional measurements, monitor colour, camera focus, and onscreen video measurements.
- Remote inspection of circumferential girth welds in welded pipelines
- Two sizes available, covering pipe internal diameters of 125-260mm and 180-1500mm
- Rugged and robust design for use on pipeline spreads both onshore and offshore
- Includes two 24-inch HD monitors, a rugged control unit/PC, and a calibration kit
- Can be deployed in three ways: attached to the rear of an ILUC, using a remote crawler vehicle, or manually using a push rod
- Both wireless and hard-wired connectivity options
- Can be powered by a battery pack when used wirelessly
- Drive output for controlling an external crawler/drive module via the system software

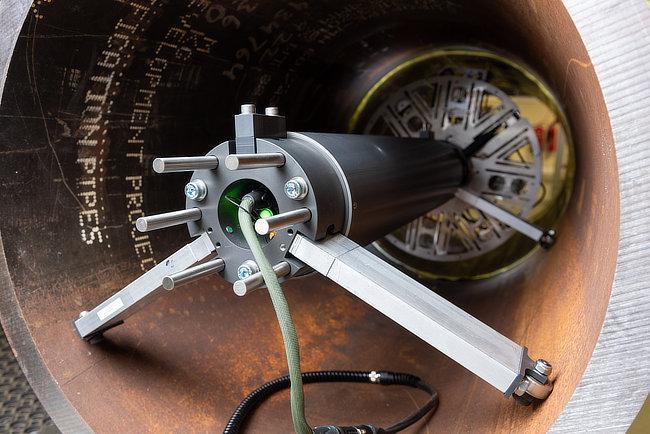

- Linear head with a movement range of up to 90mm for accurate alignment of the laser with the weld
- Auto tracking of the laser-to-weld distance for optimum laser trace when scanning
Please contact us to discuss your specific system requirements.
